FR 104 Special


HP 100
STAGE 5
HARVESTS:Vegetables, Medicinal and aromatic plants
WHERE:On the field
SECTOR:Industry
CONTAINERS:Rear lifting dump
LOCOMOTION:With wheels
Ortoline

Harvester ideal for picking up vegetables and herbs for the industrial sector

Industrial mower/harvester equipped with a STAGE 5 motor and “Automotive” function. Convenient for long road journeys. Unlike the FR 104 harvester, the rear unloading can be raised and the cabin is larger.

Full motor coverage

Prevents leaves from falling on the motor during harvesting operations.

Optimised loading belt

The greater inclination of the loading conveyor belt facilitates the ascent of the product.

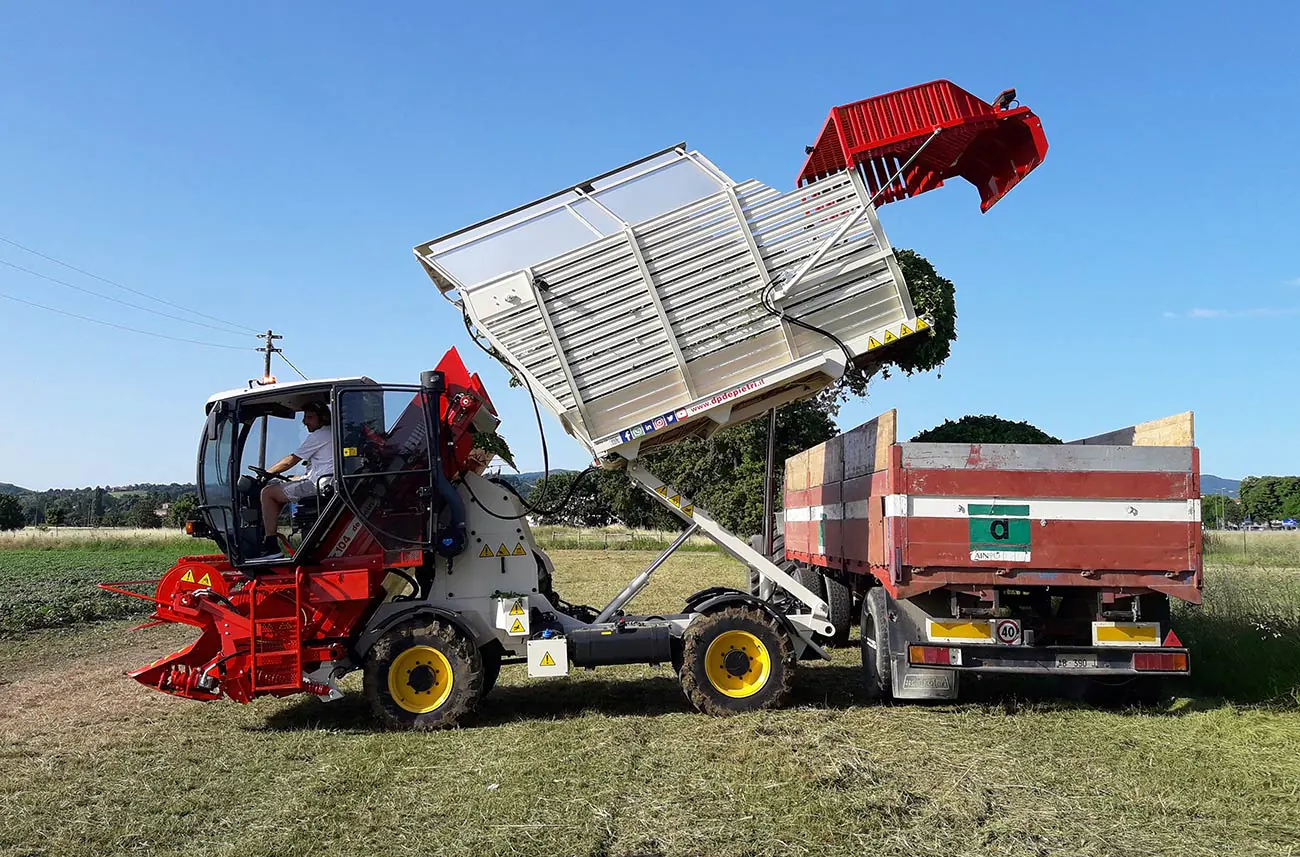

Lifting dump

High loading capacity. Lifting dump (3.5 m) ideal for unloading on trailers.

Request information
Work width

Work width
170-205 cm

Load weight

Load weight
3000 kg

icone caratteristiche elevabile

Dump lifting height
3.5 m

Speed

Work speed
0-38 km/h

Endothermic engine

Motor
John Deere 4 cylinder 100 HP Turbo, Stage 5

Weight

Weight
4500 kg

The FR 104 Special Industrial harvester is especially suitable for picking up fresh vegetables and aromatic herbs such as: Parsley, Basil, Spinach, Sage, Lavender, Rosemary, Chamomile, Nettle.

The cutting height adjustment is controlled by a hydraulic device, which guarantees perfect and total work height control without damaging or mistreating the crops and the ground. The cutting equipment weight can be adjusted making it lighter or heavier so as to better adapt it to each type of product.

CAN BE CUSTOMISED TO SPECIFIC NEEDS

The main features of the FR 104 Special Industrial harvester

Fitted with hydrostatic drive, 4-wheel drive, that is electronically controlled by a joystick and steering gear with hydraulic steering and steering wheel.

Mowing bar

The mowing bar is double, the blade is hydraulically operated in two different sizes.
The cutting height adjustment is controlled by a hydraulic device, which guarantees perfect and total work height control without damaging or mistreating the crops and the ground. The cutting equipment weight can be adjusted making it lighter or heavier so as to better adapt it to each type of product.

Loading system

The loading system could be conceived with rubber belt or reentering springs; the rubber belt complies with the rules in force for the foodstuffs and it is suitable for short leaf vegetables type spinach, parsley or basil.
The reentering springs is suggested for long leaf or voluminous products like medicinal herbs or chamomile. The loading bin can be lifted up to 3.50 m and is fitted with a chain with studs to unload the product directly into the truck.

Accessories

  • Air conditioning
  • Dump roller with unloading chain feeding automatic device
  • Customised colour
  • Mowing bar, double blade 170-205 cm

Controls and Cabin

The machine is equipped with a multi-function dashboard to control all the movements and functions directly from the driver’s seat; fitted with closed soundproof cab with air recirculation.

Service guaranteed over time
We follow our machines all over the world!

In addition to the peace of mind provided by robustness, we provide technical and operational service both to prolong efficiency and to adapt the machines to new harvests.
